define dosymbol # $1=Counter; $2=Nx; $3=Ny. set \0 1 + ($1 % ($2 * $3)) # Make sure the index is in range. panel -$2 -$3 -\0 # Set up the panel. lwidth 1 # Set the line width to narrow. box bc bc # Draw the frame for this panel. expand 0.5 # Set a small character size. mtext t -1.1 0.97 1.0 \[$1] lwidth 2 # Get a thicker line. expand 1.0 # Reset the character size. symbol $1 # Chose this symbol. dot 0 0 # Draw the symbol at the panel center. set $1 $1 + 1 # Increment the Counter. end define doloop # $1=Counter; $2=Nx; $3=Ny. erase # Clear the screen or go to next page. loop 256 dosymbol $1 $2 $3 # Draw this page and advance counter by 256. end viewport 0.2 0.8 0.2 0.8 # Set the viewport scale. winadj 0 16 0 16 # Set the aspect ratio. limits -1 1 -1 1 # Set limits. set nsig 0 # Force display to only use integer format. ask 1 # Make sure each "erase" is prompted. set \11 0 # Initialize the loop counter. loop 4 doloop \11 16 16 # Do the first half of the job. set \11 1792 # Reinitialize the loop counter. loop 5 doloop \11 16 16 # Do the second half of the job. ask 0 # Turn off the prompt.

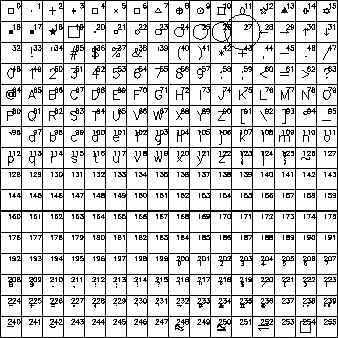

Figure E.8: A plot of a few Hershey symbols.
