E.6 Generating data internally with macros

define generate   # Usage: loop N generate; $1=Counter; $2=N; uses \9.
set $1 $1 + 1                # Increment the counter.
set \9 4 * pi * (((2 * \10) - $2) / ($2 - 1))
set x[$1] \9                 # Set x[i] equal to 4*pi*(((2*i)-N)/(N-1)).
set \9 abs(\9)               # \9 now equals abs(x).
set y[$1] cos(\9) / (1 + \9) # Set y[i] equal to cos(|x|) / (1 + |x|).
end

viewport 0.25 0.85 0.3 0.8   # Set the viewport scale.
expand 1.2                   # Set the character size.
font 2                       # Set the font type.
set \10 0                    # Initialize the counter.
loop 100 generate \10 100    # Fill the x and y arrays.
set \0 4 * pi                # Save 4 * pi.
limits -\0 \0 -0.5 1.2       # Set the limits as -4pi, 4pi, -0.5, 1.2.
box bcnst bcnstv             # Draw the box.
connect                      # Draw the curve.
symbol 2                     # Select the `+' symbol.
points                       # Draw the points.
expand 1.5                   # Set the character size a bit bigger.
mtext T 1.0 0.5 0.5 y = cos(|x|) / (1 + |x|)
expand 1.2                   # Reset the character size.
xlabel (x)
ylabel (y)

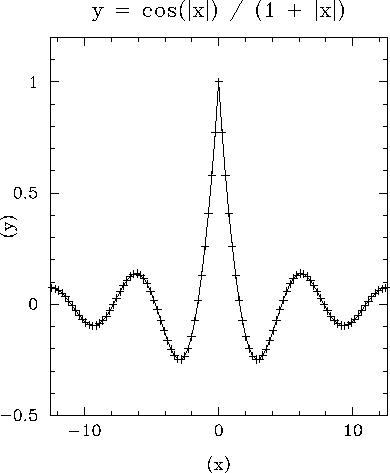

Figure E.6: A plot with data generated internally.
